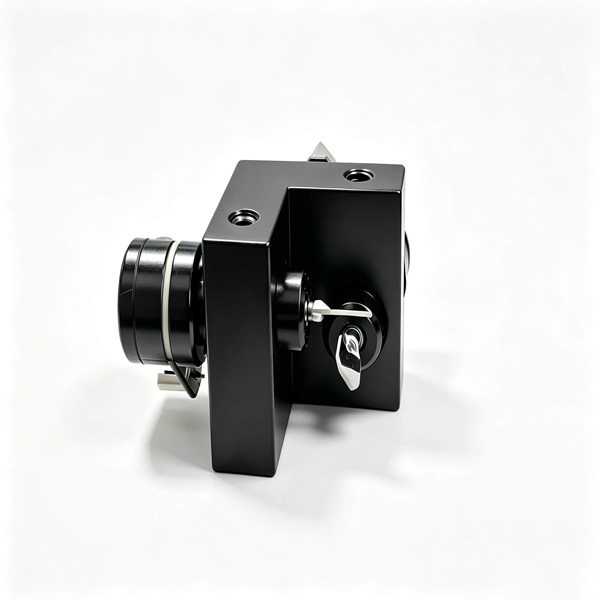

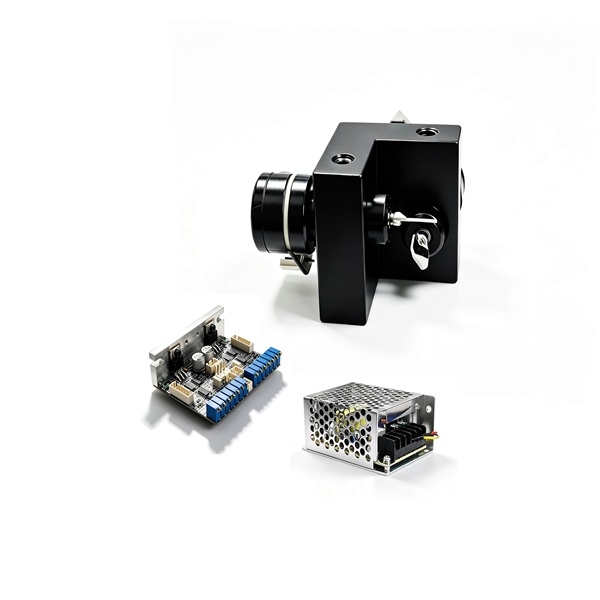

Galvo Scanners for RGB Laser Systems
The laser galvo scanning system provides high-speed X/Y beam scanning for cultural tourism light shows, outdoor laser performances and stage animations. It supports continuous operation, with customizable mirrors and optical parameters to meet project requirements.
Key Features
30K, 40K & 50K scanning options
400–700 nm mirror coating, reflectivity >98%
Continuous, stable beam scanning
High-fidelity beam effects & animations
Customizable mirrors & optical parameters
Technical Specifications
Specification | NJ-40 | NJ-50B | NJ-50BB | NJ-30 | NJ-30P |
Mirror Coating | 400–700nm | 400–700nm | 400–700nm | 400–700nm | 400–700nm |
Mirror Reflectivity | >98% | >98% | >98% | >98% | >98% |
X Mirror Dimensions (mm) | 7 × 12 | 12 × 12 | 14 × 15 | 15 × 16 | 15 × 18 |
Y Mirror Dimensions (mm) | 7 × 12 | 12 × 17 | 22 × 13 | 15 × 25 | 15 × 25 |
Maximum Scan Angle (°) | 50 | 46 | 46 | 46 | 46 |
Maximum Shaft Temperature (°C) | 110 | 110 | 110 | 110 | 110 |
Maximum Scanning Speed (Kpps) | 40 | 50 | 50 | 30 | 30 |
Scanning Speed at Maximum Scan Angle (Kpps) | 30 | 28 | 25 | 22 | 20 |
X/Y Scanner Weight (g) | 78 | 78 | 104 | 102 | 102 |
Applications
Cultural Tourism Light Shows: Dynamic laser effects for scenic attractions, theme parks and nighttime experiences.
Outdoor Laser Shows: Beam effects and laser animations for outdoor performances and events.
Stage & Entertainment: Laser graphics, animations and dynamic beam effects for concerts, theaters and live shows.
