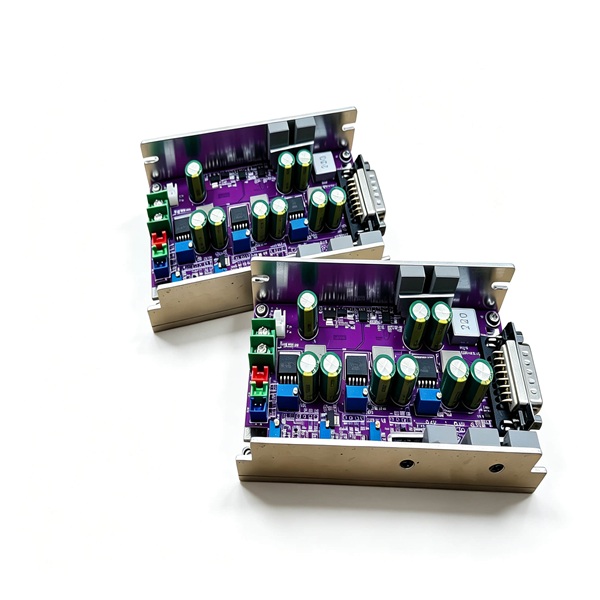

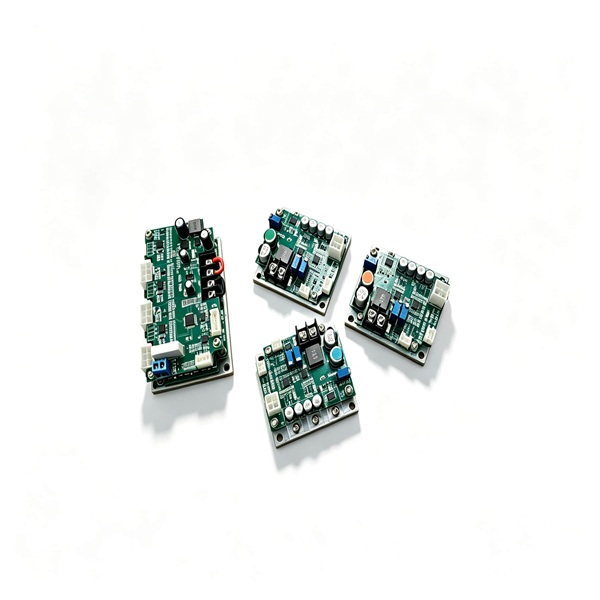

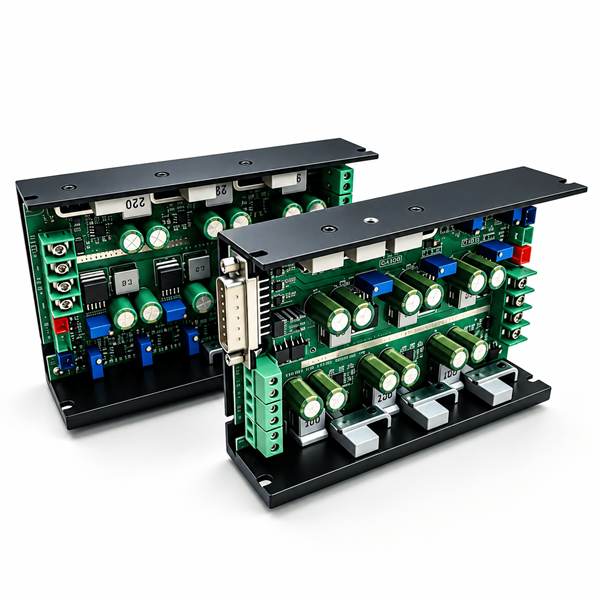

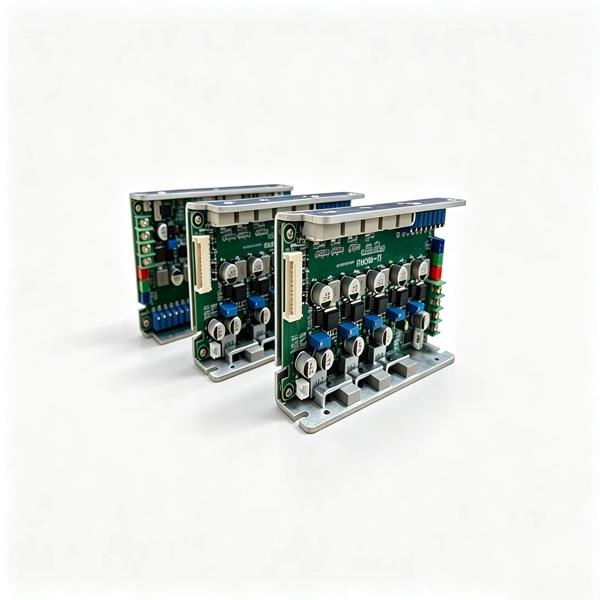

Laser Diode Drivers for RGB Laser Sources
These multichannel RGB laser diode drivers feature constant-current output, independent temperature control, adjustable current and hardware protection. They support TTL/PWM modulation and analog control, with compatibility for mainstream laser animation controllers and continuous operation.
Key Features
Multichannel RGB constant-current output
Independent temperature control
Fast TTL/PWM modulation
Continuously adjustable output current
Multiple hardware protections
0–5 V analog control, linear over 0.7–4.8 V
Technical Specifications
Specification | Driver 1 | Driver 2 | Driver 3 |
Input Voltage | 12 V | 24 V | 24–36 V |
Output Voltage | Automatically adjusted | Adjustable, 12–24 V | Adjustable, 24–36 V |
Modulation Frequency | ≥10 kHz | ≥20 kHz | ≥20 kHz |
Analog Control Input | 0–5 V | 0–5 V | 0–5 V |
Linear Analog Control Range | 0.7–4.8 V | 0.7–4.8 V | 0.7–4.8 V |
Applications
RGB laser source modules; Stage laser beam effects;
Cultural tourism laser animations; Laser projection systems
