Laser Optics & Lenses for RGB Laser Systems
Our laser optics include dichroic beam combiners, optical windows and H-K9L cylindrical lenses with dual-sided AR coatings for beam combining, transmission and shaping. Custom sizes are available for beam combiners and windows.
Key Features
Dichroic optics for RGB beam combining
Dual-sided AR windows, transmittance >98%

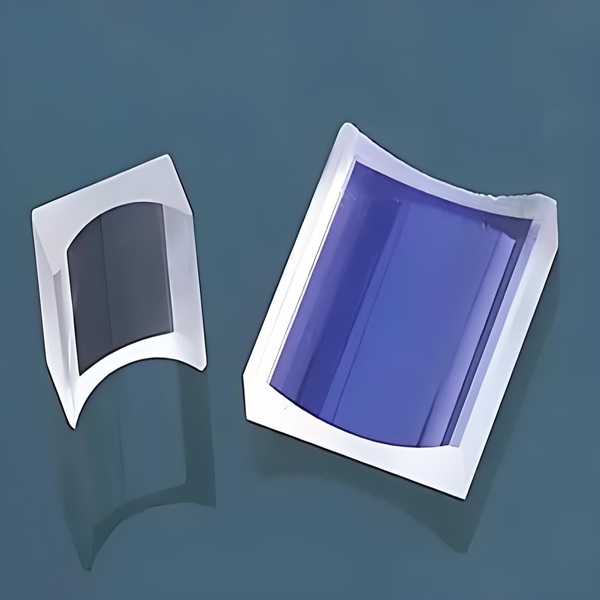

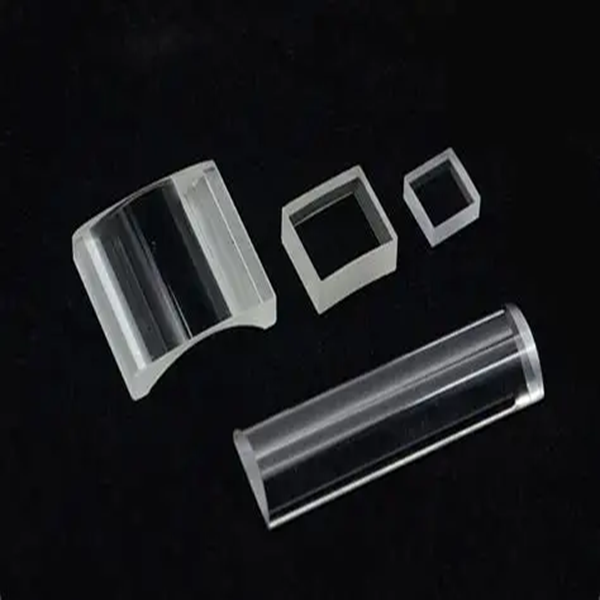

Plano-concave & plano-convex cylindrical lenses
H-K9L lenses with 400–600 nm AR coatings
Custom beam combiner & window sizes
Technical Specifications
Component | Specifications |
Dichroic Beam Combiner | Options: reflects green and transmits red; reflects blue and transmits green and red. Custom dimensions available. |
Optical Window | Visible-light AR coating on both surfaces; transmittance >98%. Custom dimensions available. |
Plano-Concave Cylindrical Lens | Material: H-K9L; radius of curvature: −4.2 / −4.03 mm; AR coating on both surfaces, T ≥98% @ 400–600 nm. |
Plano-Convex Cylindrical Lens | Material: H-K9L; radius of curvature: 14.5 / 15 mm; AR coating on both surfaces, T ≥98% @ 400–600 nm. |
Applications
RGB laser beam combining; Laser beam shaping and collimation
Laser projector optical systems; Optical transmission windows
