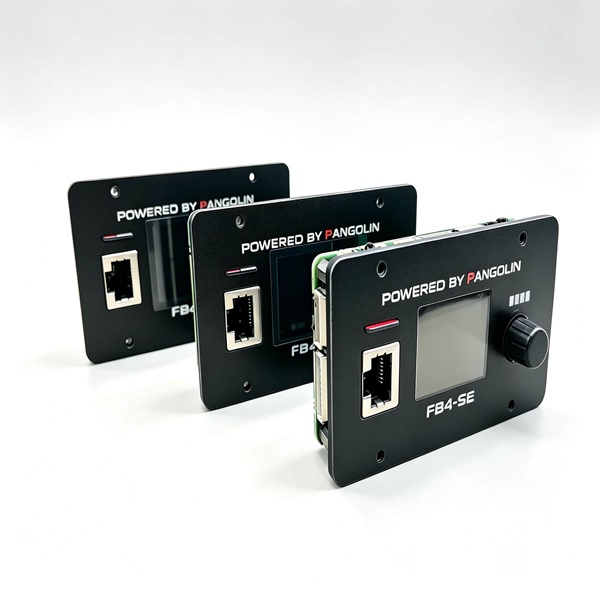

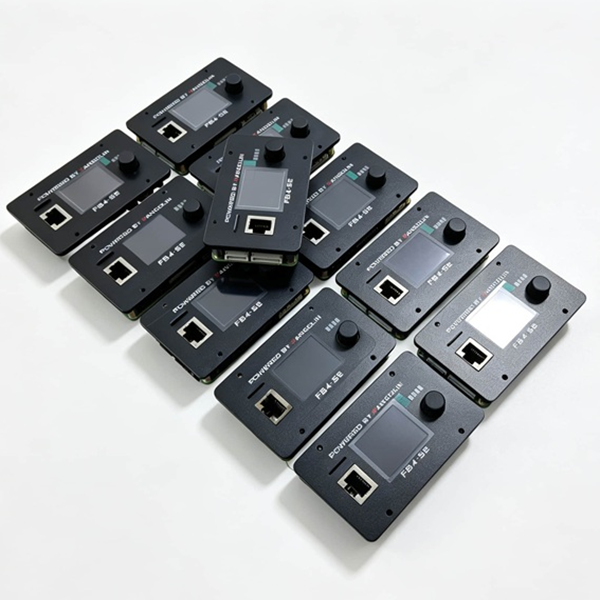

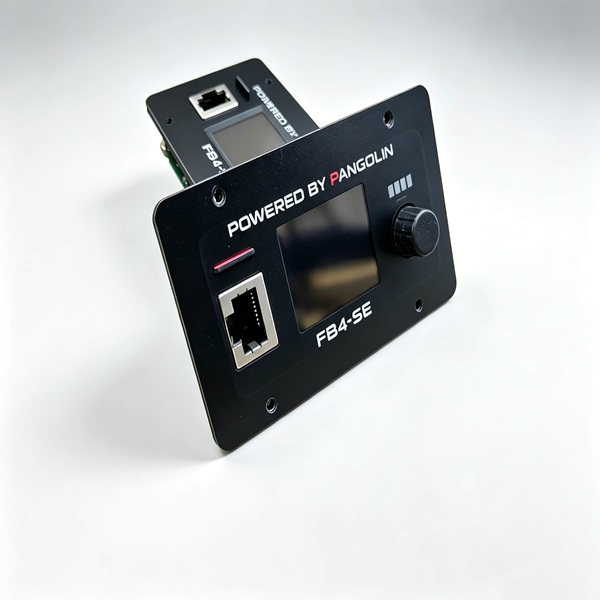

Pangolin FB4 Professional Laser Control Hardware
Pangolin FB4 is a professional network-based laser controller supporting Ethernet, PC, lighting console, Art-Net and stand-alone operation. Onboard SDXC storage enables automatic playback without a computer. Optional ILDA, DMX and EtherCON daughterboards provide flexible connectivity, while a full-color OLED display and rotary knob simplify setup.
Key Features
100 Mbps Ethernet control
QuickShow & BEYOND compatible
PC, Art-Net & stand-alone operation
Optional DMX & ILDA interfaces
SDXC storage up to 1 TB
12-bit X/Y & color control
Supports scanning up to 80K
Technical Specifications
Specification | Details |
Network Interface | 100 Mbps Ethernet |
Storage | SDXC card, up to 1 TB |
X/Y Resolution | 12-bit |
Color Resolution | 12-bit |
Color Channels | Up to 6 channels |
Scan Control Support | Up to 80K scan speeds |
Display | Full-color OLED display |
Operation Modes | PC / Art-Net / Stand-alone |
Software Compatibility | Pangolin QuickShow / BEYOND |
Optional Interfaces | DMX / ILDA / EtherCON |
Safety Control | Direct shutter connection |
Applications
FB4 is widely used in professional stage laser shows, architectural lighting, cultural tourism projects, large-scale events and permanent laser installations.
