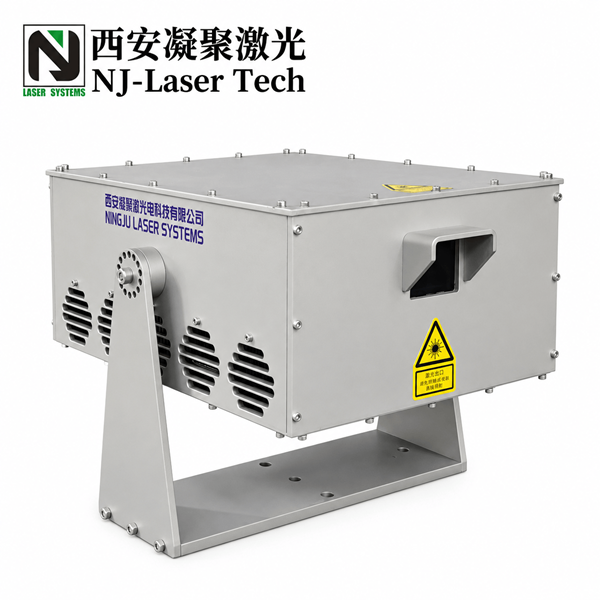

NJLS-RGB Professional Full-Color Laser Show System – 20W / 30W / 40W
NJLS-RGB Professional Full-Color Laser Show System – 20W / 30W / 40W
The NJLS-RGB Professional Series includes 20W, 30W and 40W full-color RGB laser show systems, designed for professional stage shows, theaters, live events, commercial events and outdoor laser applications.
All three models support Art-Net and multiple professional control methods, while IP65 protection, 40–50Kpps high-speed scanning and <1.0 mrad beam divergence provide reliable performance for demanding show environments.
Available in multiple power levels, the series can be selected according to venue size, projection distance and required brightness, making it suitable for both professional indoor productions and large outdoor events.
Key Features
• 20W / 30W / 40W full-color RGB laser output
• <1.0 mrad beam divergence
• 40–50Kpps high-speed scanning, depending on model
• IP65-rated protection
• DMX512 / Art-Net / Network / Console / Auto control
• Compatible with Pangolin FB4
• Designed for professional stage and outdoor laser show applications
Applications
Stage Shows · Theaters · Live Events · Banquet Halls · Commercial Events · Scenic Lighting · Outdoor Laser Shows · Large Venues
Technical Specifications
Specification | 20W | 30W | 40W |
Laser Power | 20W | 30W | 40W |
Beam Size | 5 × 7mm | 6 × 8mm | Max. 7 × 8mm |
Scanning | 40–50Kpps | 40Kpps | 40Kpps |
Control | DMX512 / Art-Net / Network / Console / Auto | DMX512 / Art-Net / Network / Console / Auto | DMX512 / Art-Net / Network / Console / Auto |
Galvo Angle | X ±30° / Y ±30° | X ±30° / Y ±30° | X ±30° / Y ±30° |
Power Consumption | ≤600W | ≤700W | ≤900W |
Weight | Approx. 25kg | Approx. 25kg | Approx. 50kg |
Dimensions | 498 × 406 × 342mm | 498 × 406 × 342mm | 746 × 465 × 244mm |
Lifetime | 15,000h | 15,000h | 15,000h |
