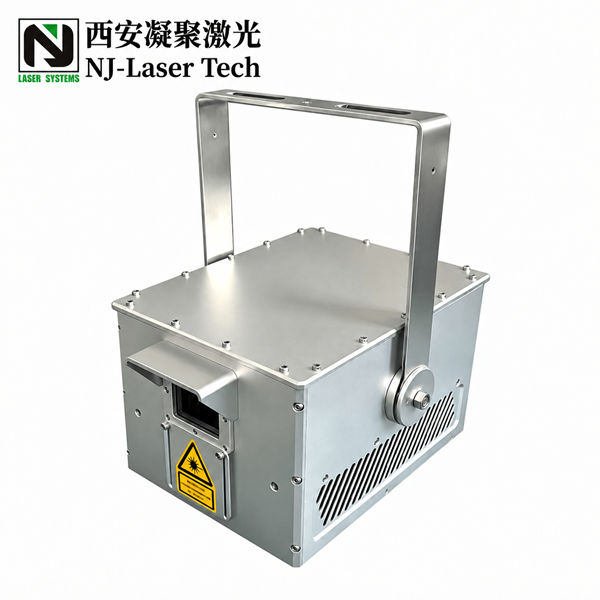

NJLS-RGB Compact Full-Color Laser Show System – 5W / 10W / 15W
The NJLS-RGB Compact Series includes 5W, 10W and 15W full-color RGB laser show systems, designed for KTVs, bars, clubs, small stages, DJ shows, live events and other entertainment venues.
Featuring a compact chassis, IP65 protection and 40Kpps high-speed scanning, the series is easy to install and suitable for both fixed installations and mobile entertainment applications.
The 15W RGB laser projector also supports Art-Net control, providing greater flexibility for professional lighting and laser show setups.
Key Features
• Full-color RGB laser output
• <1.0 mrad beam divergence
• 40Kpps high-speed scanning
• IP65-rated protection
• Compact design, approx. 10 kg
• DMX512 / Network / Console / Auto control
• Art-Net support on the 15W model
• Compatible with Pangolin FB4
Technical Specifications
Specification | 5W | 10W | 15W |
Laser Power | 5W | 10W | 15W |
Beam Size | 3 × 4mm | 3 × 5mm | 4 × 6mm |
Scanning | 40Kpps | 40Kpps | 40Kpps |
Control | DMX512 / Network / Console / Auto | DMX512 / Network / Console / Auto | DMX512 / Art-Net / Network / Console / Auto |
Galvo Angle | X ±30° / Y ±30° | X ±30° / Y ±30° | X ±30° / Y ±30° |
Cooling | TEC | TEC | TEC + air cooling |
Power Consumption | ≤250W | ≤350W | ≤500W |
Weight | Approx. 10kg | Approx. 10kg | Approx. 10kg |
Dimensions | 366 × 319 × 373mm | 366 × 319 × 373mm | 366 × 319 × 373mm |
Applications
KTVs · Bars · Clubs · Lounges · Small Stages · DJ Shows · Live Events · Entertainment Venues
